Using the CIS AWS Hardening Components

Subscribing via AWS Marketplace

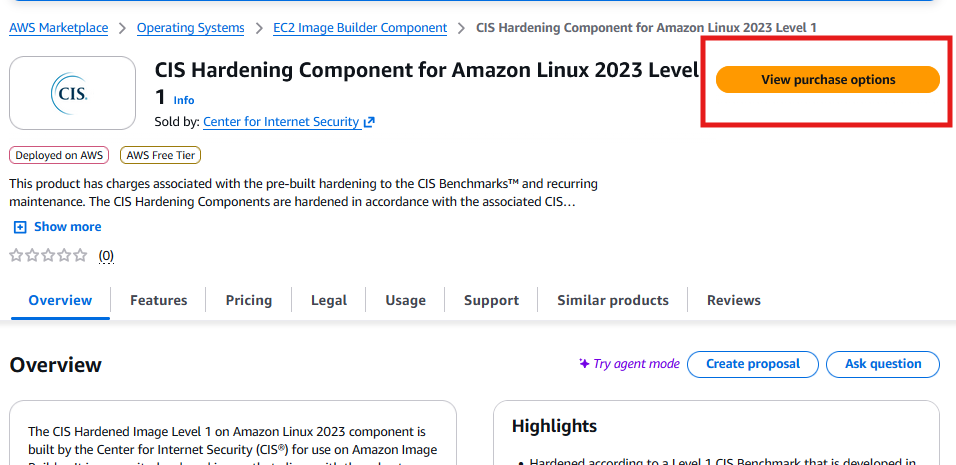

1.) Navigate to the respective Hardening Component in AWS Marketplace and select “View purchase options”.

alt text

2.) After subscribing to the offer, select “Launch your software”.

alt text

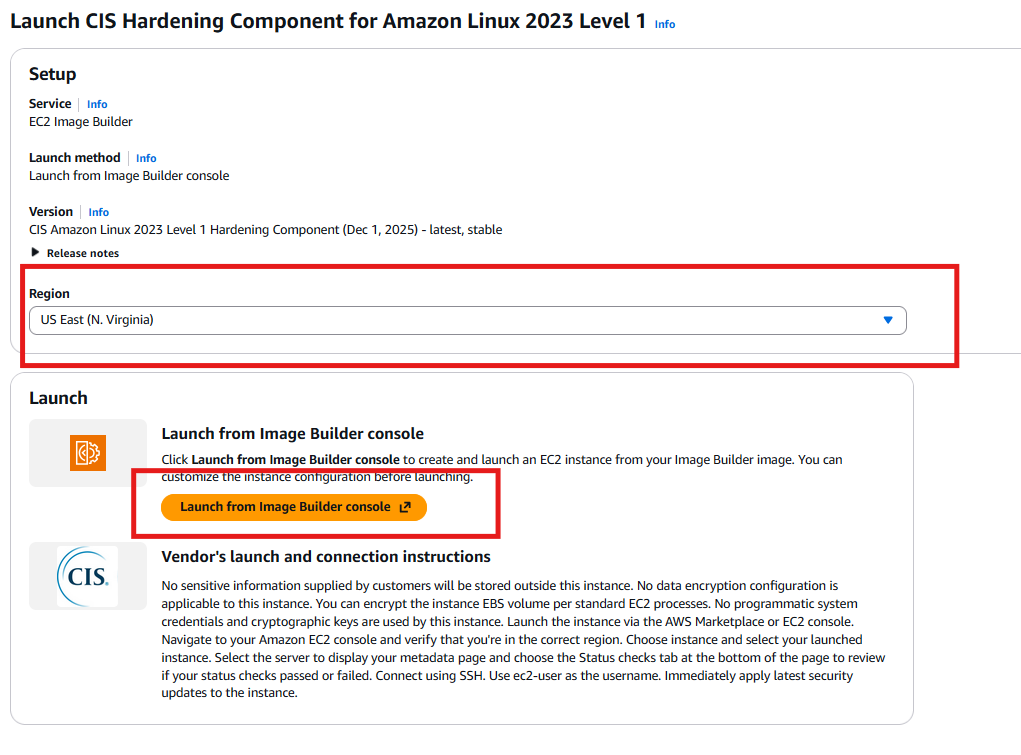

3.) On the next page, choose your deployment region.
Once the region is selected, click “Launch from Image Builder console”.

alt text

Utilizing the CIS AWS Hardening Components

1. Confirm Subscription

Ensure that: - The AWS Marketplace subscription is active in your account. - You have accepted all Terms of Use.

2. Validate IAM Role Permissions

Confirm that the IAM user or assumed role has the required Image Builder permissions.

3. Create or Edit an Image Recipe

Navigate to:

AWS Console → Image Builder → Image Recipes

You may either:

  • Create a new image recipe, or
  • Edit an existing one.

4. Add the Marketplace Component

Within your image recipe:

  1. Go to Components
  2. Select the subscribed marketplace component
  3. Specify the required version

Note: Combining this hardening component with other components has limited support.
For best results, run the CIS hardening component last in the component order.

5. Create an Infrastructure Configuration

Define:

  • Instance type
  • IAM role with required permissions
  • Optional settings such as logging or network isolation (VPC)

6. Create an Image Pipeline

Navigate back to the Image Recipe tab.

  1. Select your image recipe
  2. Open Actions → Create pipeline from this recipe
  3. Configure: Infrastructure Settings, Distribution Settings, Schedules / Triggers

7. Build and Validate

Start the build by:

  • Manually triggering a run in Image Pipelines, or
  • Allowing the scheduled trigger to execute

Monitor:

  • Image Builder console
  • CloudWatch logs

After the build completes:

  • Review CIS hardening reports
  • Validate overall system functionality
